5 Best Insulated Screwdrivers for Panel and Transfer Switch Work (2026)
The best insulated screwdrivers for panel and transfer switch work do three things well: they carry a genuine 1000V rating, they fit the square and slotted screws used in North American load centers, and they reach recessed terminals without touching the bus. I am Moses Washika, a licensed electrical engineer, and I picked these five sets for exactly that kind of job.
This post contains affiliate links. We earn a commission when you purchase through our links at no extra cost to you. We only recommend products we’ve personally tested and use ourselves.
Quick Verdict
- Best overall: Wiha 28789 Insulated TorqueVario-S Set. It is the only pick here that is both 1000V insulated and torque limiting, so one tool covers safety and code compliance.
- Best blade selection: Wiha 28390 Insulated SlimLine Set. Fourteen slim blades reach almost any breaker, neutral bar, or control terminal.
- Best compact value: Klein Tools 32288 8-in-1. Square, slotted, and Phillips tips in a pouch that fits a back pocket.
- Best fixed blade set: Milwaukee 48-22-2206 Slim Tip. Six solid drivers with magnetic tips and a UL classification.
- Best for control wiring: Wera Kraftform Kompakt VDE 17 Universal 1. Long blades and fine slotted tips for automatic transfer switch terminal strips.
Why Panel and Transfer Switch Work Needs the Right Screwdriver
A service panel is the one place in a home where turning off the main breaker does not make everything safe. The line side lugs above the main stay energized until the utility pulls the meter. One slip with a bare steel shank there can end badly.
The numbers: According to the Electrical Safety Foundation International, contact with electricity caused 5.6 percent of all US workplace deaths from 2011 to 2024. Seventy percent of those electrical deaths happened to people in non-electrical jobs. Contact with nearby energized equipment accounted for 12 percent, and working on known energized parts for another 4 percent.
Transfer switch installs are also becoming more common. Longer outages push more households toward generators, and every generator needs transfer equipment wired into the panel.
That wiring happens inches from live parts. My guide to the best voltage tester for generator hookup covers the first tool to pick up.
How to Choose Insulated Screwdrivers for Panel and Transfer Switch Work
1. Check for a Real 1000V Certification
Look for the double triangle symbol and the 1000V mark on the handle. Certified tools meet IEC 60900 or ASTM F1505, and each tool is individually tested at 10,000 volts before it is rated for 1,000 volts. A plastic handle on an ordinary screwdriver is not insulation, because the exposed steel shank can still bridge two live parts.
2. Match the Tips to North American Panels
Most breaker terminals, neutral bars, and ground bars in US panels use a combination head that accepts a slotted or a #2 square (Robertson) tip. Square tips grip far better and are less likely to slip toward the bus. A good panel set needs #1 and #2 square, 3/16 inch and 1/4 inch slotted, and a #2 Phillips for covers and devices.
3. Choose Slim Shafts for Recessed Terminals
Standard insulation makes the shaft thick, which can stop the tip from seating in deep breaker terminals. Slim designs mold the insulation into the blade itself. Wiha states its SlimLine blades are up to 33 percent narrower than standard insulated tools.
4. Take Torque Seriously
Since the 2017 edition, NEC 110.14(D) has required a calibrated torque tool wherever the manufacturer gives a numeric torque value, and nearly every breaker and lug label does. Hand feel is not good enough. Research published by the International Association of Electrical Inspectors found that only about 25 percent of connections tightened without a torque tool landed within 20 percent of the specified value.
Loose terminations heat up, and overtightened ones damage the conductor. An insulated torque screwdriver solves both the safety and the accuracy problem.
5. Decide Between Fixed and Interchangeable Blades
Interchangeable sets give you more tip types in less space, which suits a service bag. Fixed blade drivers are faster to grab and have no joint to wear out.
6. Remember What Insulation Does Not Do
Insulated tools are a backup layer, not permission to work live. OSHA standard 1910.335 requires insulated tools when employees work near exposed energized conductors, and that sits on top of the duty to de-energize wherever possible. Switch off, test, and then work as if it were still live.
Comparison Table: Specs at a Glance
| Model | Type | Pieces | Square Tips | Torque Limiting | Price Tier |
|---|---|---|---|---|---|
| Wiha 28789 TorqueVario-S | Interchangeable, torque | 11 | Yes | Yes, 10 to 50 in-lb | Premium |
| Wiha 28390 SlimLine | Interchangeable | 15 | #1 and #2 | No | Upper mid |
| Klein Tools 32288 | Interchangeable | 7 (8 tips) | #1 and #2 | No | Budget friendly |
| Milwaukee 48-22-2206 | Fixed blade | 6 | #2 | No | Mid range |
| Wera KK VDE 17 Universal 1 | Interchangeable | 17 | No | No | Upper mid |
The 5 Best Insulated Screwdrivers for Panel and Transfer Switch Work
Best Overall

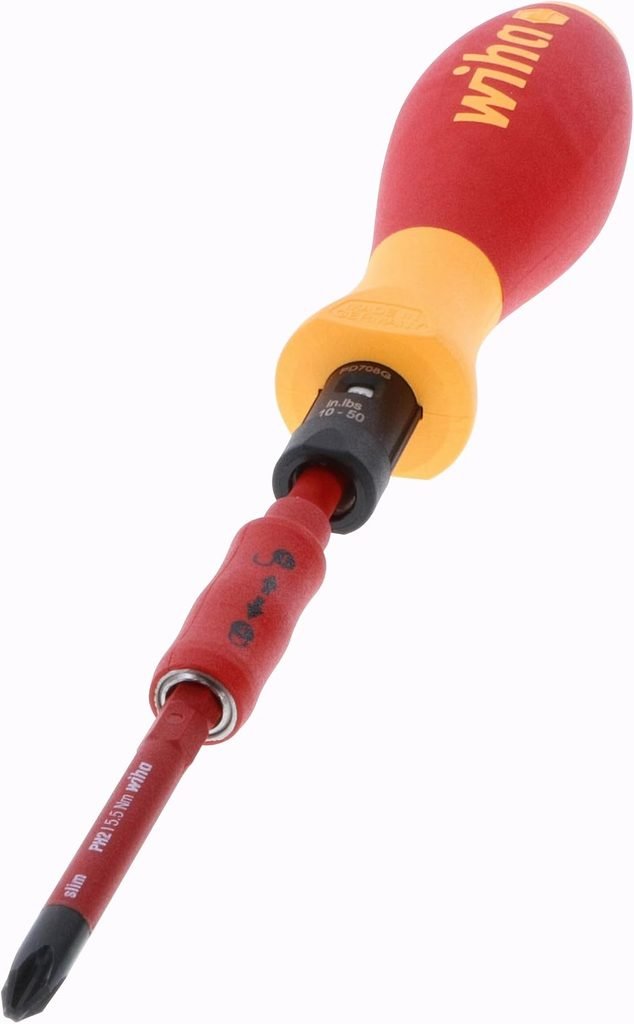

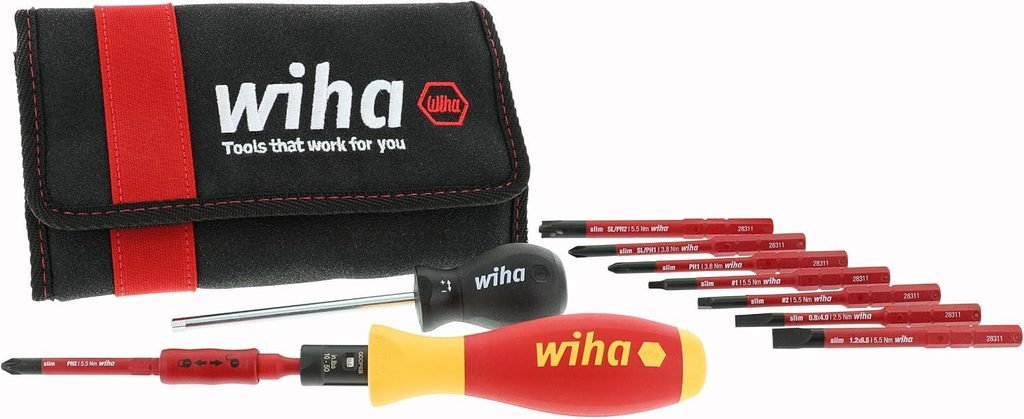

1. Wiha 28789 Insulated TorqueVario-S and SlimLine Blade Set
This is the set I would hand to anyone landing conductors on breakers or transfer switch lugs. The handle is adjustable from 10 to 50 inch pounds and clicks over when you reach the set value. Because the handle and blades are both rated to 1000V, you get protection and code compliant torque from a single tool.
The kit includes the torque handle, a blade holder, an adjustment tool, and eight SlimLine blades in a canvas pouch. Square blades are included, which matters for panel work. Wiha rates the calibration for 5,000 cycles or one year, whichever comes first.
| Voltage rating | 1000V AC, each tool tested at 10,000V |
| Torque range | 10 to 50 in-lb, adjustable |
| Pieces | 11, including 8 SlimLine blades |
| Storage | Canvas pouch |
Pros
- Insulated and torque limiting in one tool
- Slim blades reach recessed terminals
- Square blades included
Cons
- Premium price
- Needs periodic recalibration
- 50 in-lb limit will not cover large main lugs
Verdict: 9.5/10. The most complete answer for branch breaker and transfer switch terminations. Larger lugs still need a torque wrench.
Best Blade Selection

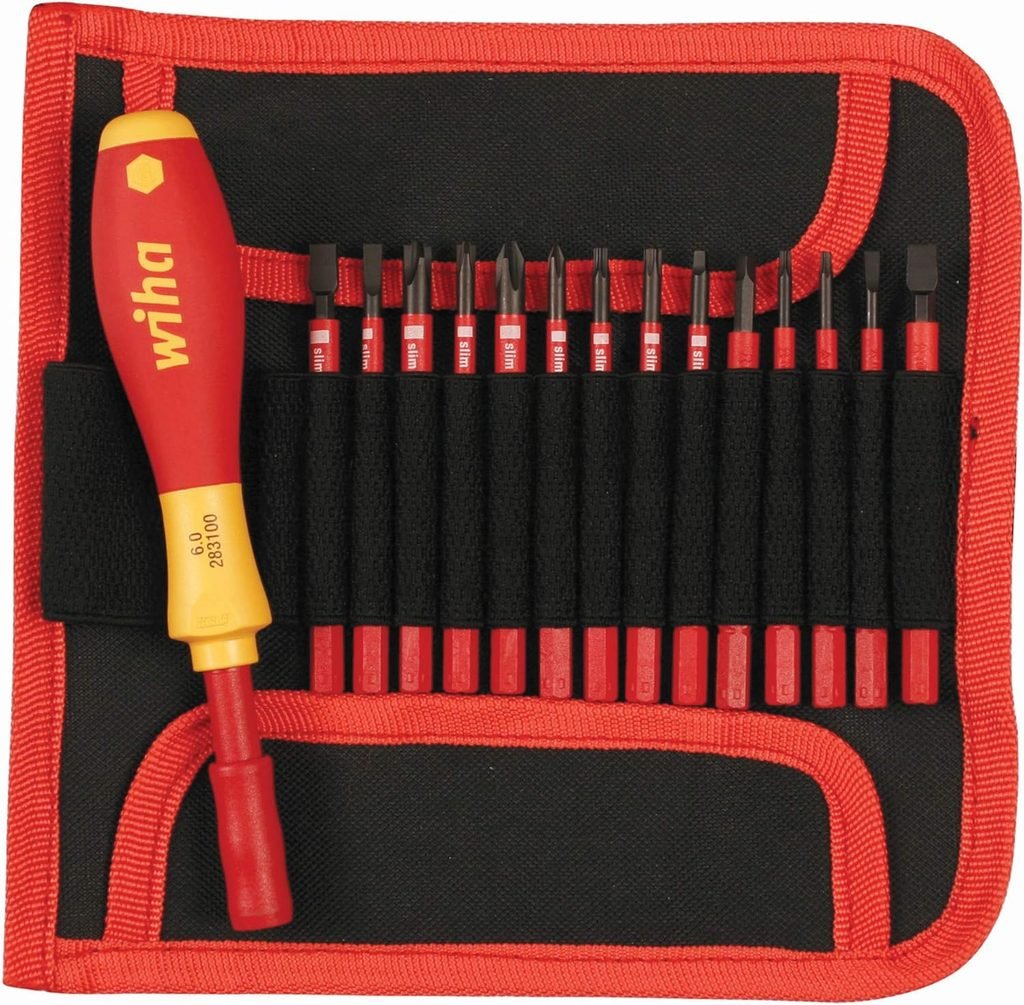

2. Wiha 28390 Insulated SlimLine Interchangeable Set
If you already own a torque driver, this is the set to pair with it. One cushion grip handle takes fourteen blades: four slotted, two Phillips, two Xeno terminal, four Torx, and #1 and #2 square. That covers breakers, bars, covers, and transfer switch terminals.
The insulation is molded into each blade, so it never exceeds the screw head diameter. Every blade is individually tested at 10,000 volts.
| Voltage rating | 1000V AC, each tool tested at 10,000V |
| Standards | IEC 60900, ASTM F1505, VDE |
| Pieces | 15: handle plus 14 blades |
| Square tips | #1 and #2 |
Pros
- Widest tip range in this roundup
- Slim molded insulation
- Xeno tips suit combination terminal screws
Cons
- No torque limiting
- Loose blades are easy to misplace
- Costs more than basic sets
Verdict: 9.2/10. The best everyday panel set for working electricians who want one handle and every tip.
Best Compact Value

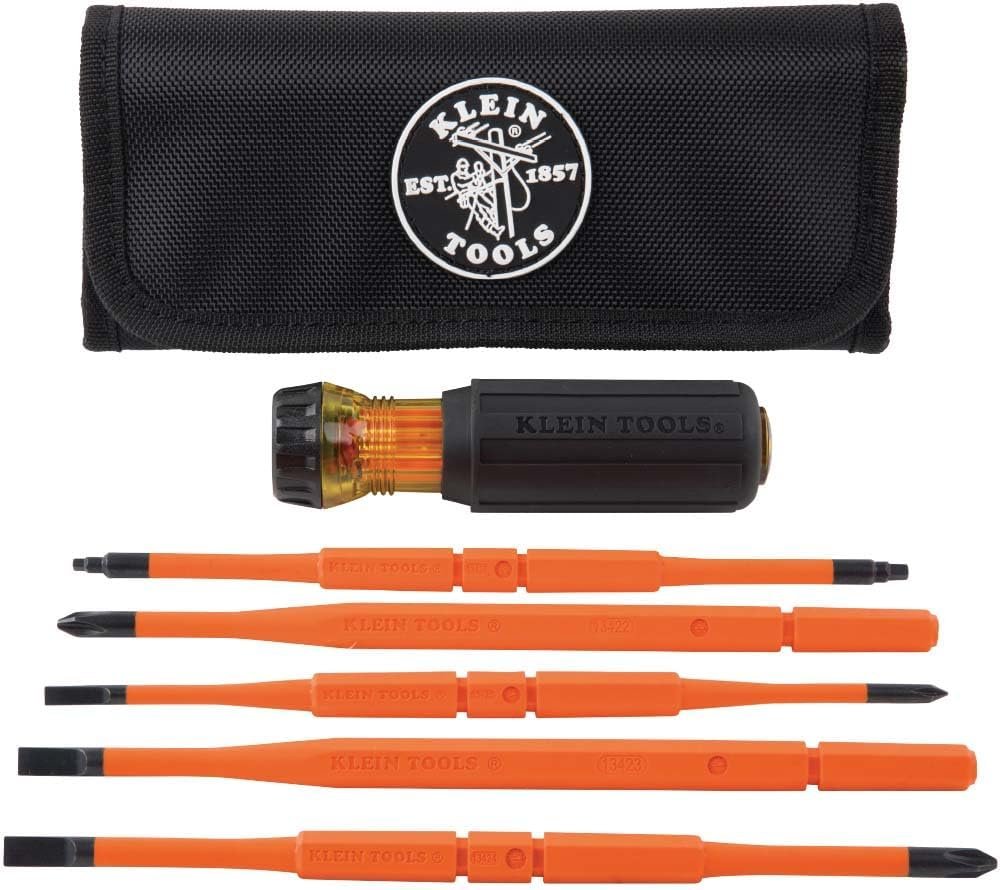

3. Klein Tools 32288 8-in-1 Insulated Interchangeable Set
The Klein 32288 is the easiest way to get insulated square tips without spending much. One handle and five blades give you eight tips: two #2 Phillips, two 1/4 inch slotted, a #1 Phillips, a 3/16 inch slotted, and #1 and #2 square. A twist of the lock collar releases the blade.
Klein states the handle and blades meet or exceed ASTM F1505 with a 1000V rating. Single end blades have a 5.75 inch shaft, which gives useful reach past breaker bodies.
| Voltage rating | 1000V |
| Standard | ASTM F1505 |
| Pieces | Handle, 5 blades, roll pouch |
| Shaft length | 3.5 in double end, 5.75 in single end |
Pros
- Both square sizes included
- Fast blade change collar
- Friendly price for a certified set
Cons
- Tips are not magnetic
- Double end blades are short
- No Torx or torque control
Verdict: 8.9/10. Ideal for homeowners, apprentices, and generator installers who need a certified set for occasional panel work.
Best Fixed Blade Set

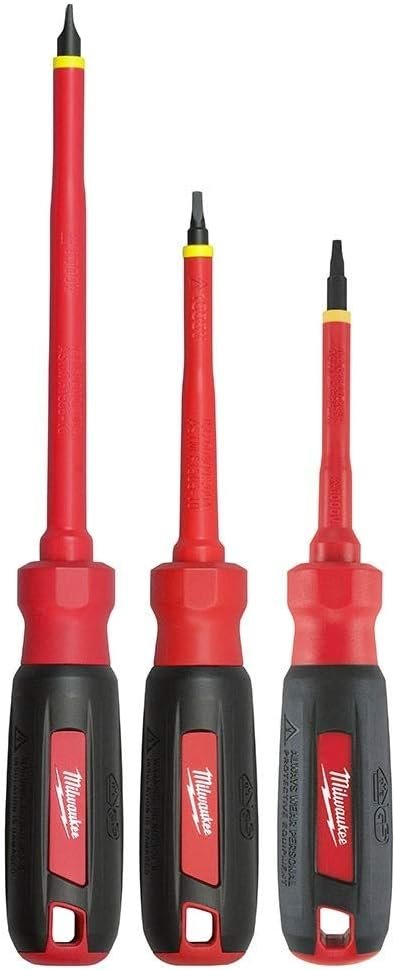

4. Milwaukee 48-22-2206 1000V Insulated Slim Tip Set
Some people simply prefer a solid, one piece driver, and this is the set for them. You get six: 1/4 inch cabinet and #2 Phillips on 4 inch shafts, plus 3/16 inch cabinet, #2 square, #1 Phillips, and #2 Phillips on 6 inch shafts. The 6 inch #2 square is the one you will use most inside a load center.
The insulation sits flush at the tip, so the blade slides into tight spaces. Milwaukee lists the set as UL Classified to insulated tool standards. Magnetic tips hold cover screws securely.
| Voltage rating | 1000V, UL Classified |
| Pieces | 6 fixed blade drivers |
| Square tips | #2 on a 6 in shaft |
| Tip feature | Magnetic, flush insulation |
Pros
- No joints or loose blades
- Magnetic tips
- Clear size markings on each handle
Cons
- No #1 square
- Bulkier to carry than a blade set
- No torque control
Verdict: 8.8/10. A tough, simple set for electricians who want grab and go drivers on the belt.
Best for Control Wiring

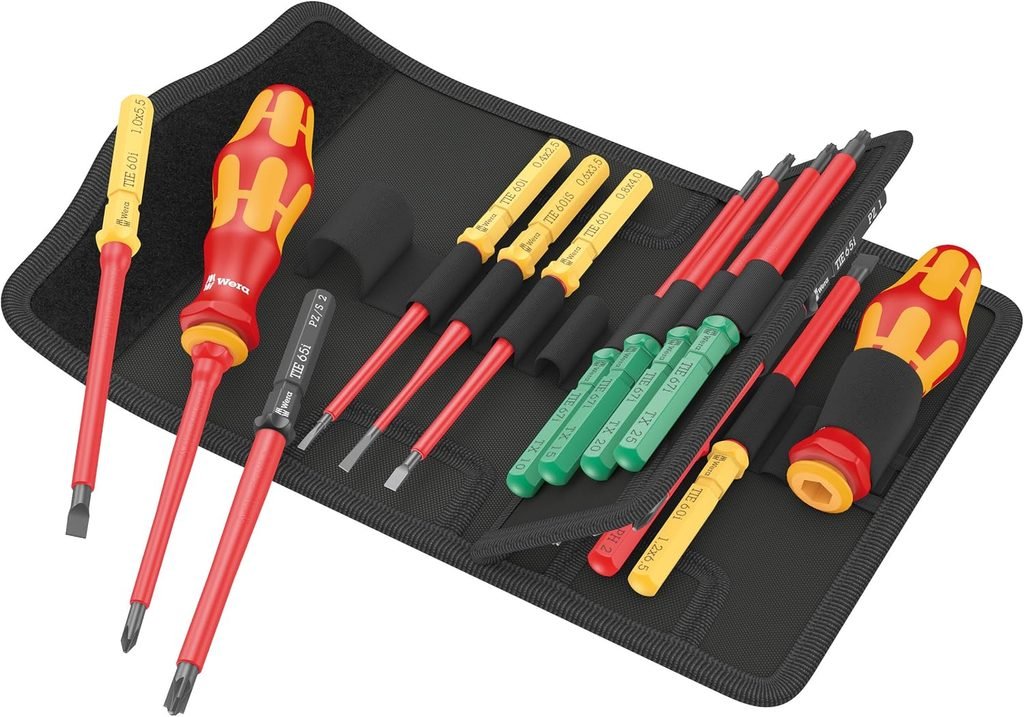

5. Wera Kraftform Kompakt VDE 17 Universal 1
Automatic transfer switches add a second kind of work: small control terminals and terminal strips. This Wera set suits that job. It has two insulated handles and fifteen blades, each 157 mm long, including a reduced diameter slotted blade for sunken screws and spring terminals.
Every piece is individually tested at 10,000 volts under IEC 60900. The catch for US panels is that it carries no square tips, so treat it as a companion set.
| Voltage rating | 1000V, each tool tested at 10,000V |
| Standard | IEC 60900, VDE |
| Pieces | 2 handles plus 15 blades |
| Blade length | 157 mm |
Pros
- Two handles speed up repetitive work
- Long blades for deep enclosures
- Excellent Kraftform grip
Cons
- No square tips
- Pozidriv blades see little use in the US
- Largest pouch of the five
Verdict: 8.4/10. A superb control wiring set, but not a standalone choice for North American breaker panels.
Scored Summary
| Model | Safety | Tip Fit | Reach | Torque | Value | Overall |
|---|---|---|---|---|---|---|
| Wiha 28789 TorqueVario-S | 10 | 9 | 9.5 | 10 | 8.5 | 9.5 |
| Wiha 28390 SlimLine | 10 | 10 | 9.5 | 7 | 9 | 9.2 |
| Klein Tools 32288 | 9.5 | 9 | 8.5 | 7 | 10 | 8.9 |
| Milwaukee 48-22-2206 | 10 | 8.5 | 9 | 7 | 9 | 8.8 |
| Wera KK VDE 17 Universal 1 | 10 | 7 | 9.5 | 7 | 8 | 8.4 |
Safe Working Steps Before You Open the Panel
Good tools only help if the process is right. This is the order I follow.
- Identify the circuit. A circuit breaker finder saves guesswork on unlabeled panels.
- Switch off the breaker, or the main if you are landing transfer switch conductors.
- Prove your tester on a known live source, test the conductor, then prove the tester again.
- Treat the line side lugs as live at all times and keep tools away from them.
- Tighten each termination to the labeled torque value with a calibrated tool.
- After energizing, confirm load current with a clamp meter.
If any step feels unfamiliar, hire a licensed electrician. Many jurisdictions require a permit and inspection for transfer switch installation. My project tool checklist lists everything else you will need for the job.
Frequently Asked Questions
Do I need insulated screwdrivers for panel and transfer switch work if the power is off?
Yes. The line side of the main breaker stays energized even with the main off, and mislabeled or backfed circuits are common. Insulated screwdrivers for panel and transfer switch work give you a second layer of protection if something is live when it should not be.
What screwdriver tip fits most breaker terminals?
Most North American breakers, neutral bars, and ground bars use a combination head that takes a #2 square or a slotted tip. The square tip grips better and slips less.
Is a torque screwdriver required by code?
NEC 110.14(D) requires a calibrated torque tool, or another approved means, when the manufacturer provides a numeric torque value. Most breakers and transfer switches print that value on the label. An insulated torque screwdriver is the simplest way to comply.
How do I know an insulated screwdriver is genuine?
Look for the 1000V marking, the double triangle symbol, and a stated standard such as IEC 60900 or ASTM F1505. Reputable brands test each tool individually at 10,000 volts.
When should I replace an insulated screwdriver?
Replace it when the insulation is cut, cracked, burned, or worn through to a different color underneath. Many tools use two layers in contrasting colors so damage is easy to see. Never tape over damaged insulation.
Final Recommendation
For most readers, the Wiha 28789 is the smartest buy because it handles both protection and torque. On a tighter budget, the Klein 32288 gives you certified square tips for very little money.
