Best Dust Collector for One Car Garage Shops in 2026
This post contains affiliate links. We earn a commission when you purchase through our links at no extra cost to you.
Any dust collector for one car garage duty has to fit a hard box: roughly 240 square feet of floor, one or two 15 amp circuits, and a door you still want to open. Every unit below was picked against that box.
Most buying guides ignore that box and rank collectors by raw airflow, pointing you at a 3 HP cyclone that needs 220 volt service and a nine foot ceiling. In a single bay garage, that machine is a very expensive coat rack.
The right dust collector for one car garage use comes down to four things: airflow at the tool, filtration into the respirable range, amp draw on a household circuit, and footprint. Every spec below is manufacturer published data.
Mounts on the wall to free your whole floor, moves 800 CFM through a 4 inch inlet or 1,100 CFM through 5 inch, and filters to 1 micron with a pleated canister.
Check Price on Amazon →The Short Answer
Best overall: RIKON 60-101. Bolts to the wall, frees the entire floor, and still pulls 800 CFM through a 4 inch port with a 1 micron canister.
Most airflow: WEN DC1300. 1,300 rated CFM and a 50 gallon bag, as long as you can give it a dedicated circuit.
Best value: POWERTEC DC5371. A 1 HP wall unit with a 1 micron bag that drops to 6 amps on 240V, which matters when your garage shares one circuit with the freezer.
Why a One Car Garage Changes the Math
Dust in a small enclosed room does not disperse the way it does in a 2,000 square foot shop. It concentrates. Fewer cubic feet of air means a higher airborne concentration from the same cut, and a closed door means almost no air exchange to dilute it.
That concentration is the health issue. OSHA sets a permissible exposure limit of 15 mg/m³ for total wood dust and 5 mg/m³ for the respirable fraction, both as an eight hour time weighted average. NIOSH recommends a far stricter 1 mg/m³ for all wood dust.
The stakes are not theoretical. The International Agency for Research on Cancer classified wood dust as a Group 1 carcinogen in 1995, linked to cancers of the nasal cavity, paranasal sinuses and nasopharynx. The US National Toxicology Program followed in 2002.
Particle size separates a tidy shop from a safe one. Particles above 10 microns are caught in your nose and throat, while the 0.5 to 5 micron fraction reaches the alveoli and can stay there indefinitely. That fraction is invisible, so the chip pile under your saw tells you nothing about it.
How Much CFM You Actually Need
Size the collector for your single hungriest machine, not the total of every tool you own. You run one machine at a time and blast gates close the rest, which saves most people several hundred dollars.
Published requirements at the machine port sit in a tight band. A table saw wants roughly 350 to 450 CFM, a jointer 350 to 450, a planer 400 to 600, a miter saw 300 to 500, a bandsaw around 350, and a router table 200 to 400.
So your target at the tool is 400 to 600 CFM. The trap is that rated CFM is measured at the inlet with minimal restriction, and no collector delivers that number at the far end of a hose.
Duct losses are badly underestimated. A 10 foot run with two 90 degree elbows can cut output by 30 to 40 percent, since each elbow costs about as much as 10 feet of straight pipe. Undersizing the main to 4 inches on a 1.5 HP unit can choke it to roughly 60 percent of rated flow.
Velocity matters as much as volume. Wood chips stay suspended between about 3,500 and 4,500 feet per minute, and below that they drop out and pack your horizontal runs solid. Keep hose runs under 10 feet, stay at 4 inches minimum, and buy 1.5 times your largest machine’s requirement.
Filtration Is the Spec Most Buyers Get Wrong
Filter rating is where cheap collectors give the game away. A standard 30 micron bag captures chips and passes almost everything respirable straight back into the room. Survivable in an open industrial building, not in your closed garage.
Treat 5 micron as the floor, 2 micron as acceptable, and 1 micron or HEPA grade as the target. HEPA media captures 99.97 percent of particles at 0.3 microns, right in the range that reaches your alveoli.
Pleated canisters beat bags twice over. More surface area in the same height keeps airflow high as the filter loads, and they clean without releasing a cloud. Shaking a loaded bag in a small garage defeats the whole point.

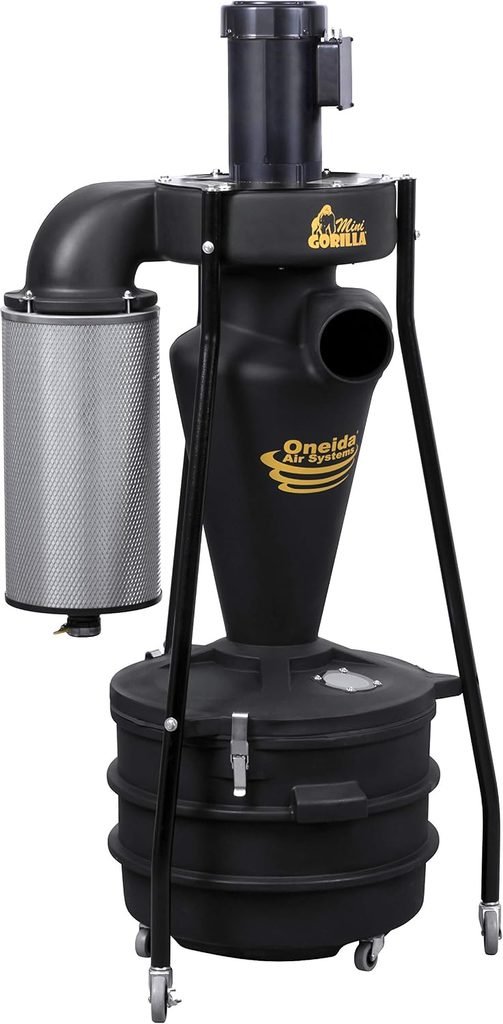

Two stage cyclones go further by separating debris before it ever touches the filter. Oneida rates its cyclone at separating over 99 percent of bulk debris and fine dust into the bin. The filter stays clean, airflow stays near rated, and you empty a bin instead of wrestling a bag.
Power and Footprint Limits in a Single Bay
A 120 volt, 15 amp circuit gives you 1,800 watts before the breaker trips, and continuous load guidance puts the practical ceiling nearer 1,440 watts. That is roughly 1.5 HP of collector, and only if nothing else meaningful shares the circuit.
Check amp draw before horsepower. The POWERTEC DC5371 draws 12 amps at 120 volts, the JET DC-1100VX draws 11 amps at 115 volts, and the WEN DC1300 draws 14 amps. That last figure trips a shared circuit the moment your compressor kicks in.
Footprint is the other hard limit, and wall mounted units give back every square foot they occupy. Garages also have hard reflective surfaces, and single stage collectors commonly sit at 70 to 80 dB. Keep hearing protection on the wall next to the switch.
Specs at a Glance
| Model | Motor | Rated Airflow | Filtration | Mounting |
|---|---|---|---|---|
| RIKON 60-101 | 1 HP TEFC, 120/240V | 800 CFM at 4 in | 1 micron canister | Wall mounted |
| JET DC-1100VX-CK | 1.5 HP, 115/230V, 11A | 1,100 CFM at 4 in | 2 micron canister | Four casters |
| POWERTEC DC5371 | 1 HP, 120/240V, 12A/6A | 560 CFM | 1 micron bag | Wall mounted |
| WEN DC1300 | 14A motor, 3,450 RPM | 1,300 CFM | 5 micron bag | Mobile base |
| POWERTEC DC5372 | 1 HP, 120/240V | 560 CFM | 1 micron bag | Casters |
1. RIKON 60-101 Wall Mount: Best Overall
This is the answer when floor space, not budget, is the binding constraint. It bolts to studs above or beside your primary machine and returns its entire footprint to you.
The 10 inch spiral impeller moves 800 CFM through a 4 inch inlet, or 1,100 CFM if you step up to the 5 inch option. That is genuinely strong for a 1 HP motor, and the pleated canister is rated to 1 micron, which is better filtration than most units twice the price.
A dual 4 inch inlet with a cap lets you hard plumb two machines and switch by moving the cover. The 1.5 cubic foot debris bag is small, so expect frequent changes if you run a planer.
Pros
- Zero floor space consumed
- 1 micron pleated canister
- Dual inlet serves two machines
- 120V or 240V wiring
Cons
- Small 1.5 cubic foot bag
- Fixed position once mounted
- Needs solid stud mounting
Verdict: The best airflow per square foot of floor on this list, and the 1 micron canister means you are not trading filtration for space.
2. JET DC-1100VX-CK: Best for a Ducted Garage System
Pick this if you plan short fixed ductwork to three or four machines rather than dragging a hose. The rated 1,100 CFM at 4 inches and 10.5 inches of static pressure give you the headroom duct losses will eat.
The Vortex Cone is the design feature worth understanding. It improves chip separation before the filter, which delays clogging and packs the collection bag more efficiently, giving you some of the benefit of a cyclone in a single stage cabinet.
You get one 6 inch port or two 4 inch ports, and the 5.3 cubic foot bag means far fewer emptying trips than the RIKON. It is tall, so measure your ceiling first.
Pros
- Strongest static pressure here
- Vortex Cone delays filter clogging
- 6 inch or dual 4 inch inlets
- Large 5.3 cubic foot bag
Cons
- Tall cabinet needs ceiling height
- 11 amps at 115V
- 2 micron, not HEPA grade
Verdict: The right choice when you want permanent ducting in a small shop and need airflow that survives a few elbows.
3. POWERTEC DC5371 Wall Mount: Best Budget Wall Mount
The DC5371 gets a 1 HP collector off the floor for less than most wall units. Its induction motor runs on 120 or 240 volts, drawing 12 amps at 120V or 6 amps at 240V. Switching to 240V is the easy way to keep it off a shared garage circuit.
Rated at 560 CFM through a single 4 inch port, it is built for short direct hose runs rather than a duct network. That logic holds up in a single bay where nothing sits more than a few feet away. POWERTEC credits its Vortex Base design with up to 10 percent better dust removal than comparable units.
Filtration is better than most budget units, with a reusable 1 micron bag. A viewing window shows the dust level, and a bottom zipper makes emptying easy. A grate on the port protects the impeller but needs clearing now and then.
Pros
- 1 micron bag as standard
- Frees all floor space
- Dual voltage 120V or 240V
- Bag window and zipper
Cons
- 12 amps on 120V
- Lower airflow than the bigger units
- Not suited to ducted runs
Verdict: The sensible entry point for a single bay garage, especially if you can give it a 240V outlet.
4. WEN DC1300: Best Big Capacity Value
The headline number is 1,300 CFM from a 14 amp motor spinning a 10 inch steel impeller at 3,450 RPM. Dual 4 inch inlets let you connect two tools, and the vertical 50 gallon bag means you can go a long time between emptyings.
That capacity earns its keep if you run a planer, which buries a small bag in one session. The mobile base is included, so you can park it against a wall and roll it out.
Two caveats matter in a one car garage. The 5 micron stock bag sits at the bottom of the acceptable range, and 14 amps is very close to the ceiling of a 15 amp circuit. Treat a canister filter upgrade as part of the purchase price.
Pros
- Highest rated airflow here
- 50 gallon collection bag
- Dual 4 inch inlets
- Mobile base included
Cons
- 5 micron stock filtration
- 14 amps strains a 15A circuit
- Tall bag needs headroom
Verdict: Strong airflow per dollar, held back by stock filtration that you should plan to replace.
5. POWERTEC DC5372: Best Portable
The DC5372 is the portable version of the POWERTEC wall unit, on casters so it rolls to whichever machine is running. It moves 560 CFM through a single 4 inch port, enough for a table saw, jointer or bandsaw on a short hose. The 1 HP motor runs on 120 or 240 volts.
A reusable 1 micron bag with a viewing window and bottom zipper handles filtration. At about 44 pounds it is easy to push around a single bay. The bag still needs emptying and shaking, which is best done outdoors.
Pros
- Rolls between machines on casters
- 1 micron bag as standard
- Dual voltage motor
- Compact for a single bay
Cons
- Bag filter needs shaking
- Single inlet only
- Modest airflow for a planer
Verdict: The pick if you want one collector that follows you from tool to tool.
Summary
| Model | Best For |
|---|---|
| RIKON 60-101 | Best overall, tight floor space |
| JET DC-1100VX-CK | Short ducted systems |
| POWERTEC DC5371 | Budget wall mount |
| POWERTEC DC5372 | Moving between machines |
| WEN DC1300 | Airflow on a budget |
Whichever unit you choose, pair it with a fitted respirator and eye protection during heavy sanding. Our guide to anti-fog safety glasses covers the lenses that survive a dusty garage without constant wiping.
Frequently Asked Questions
Is a shop vac enough for a one car garage?
A shop vac moves roughly 100 to 150 CFM, which suits sanders and routers but not a table saw or planer. Those need 350 CFM or more at the port. Pairing a shop vac with a cyclone separator is an interim step, not a permanent answer.
Do I need 220 volt power for a dust collector?
No. Every unit here runs on 120 volts. A 15 amp circuit caps out near 1,800 watts, roughly 1.5 HP of collector.
What micron rating should I look for?
Treat 5 micron as the minimum, 2 micron as acceptable and 1 micron or HEPA grade as the target. Particles under 10 microns are respirable, so anything coarser leaves the harmful fraction circulating.
Should I wall mount or go portable?
Wall mount if your machines stay put and floor space is scarce, which describes most one car garages. Go portable if you reconfigure often or need overhead capture for a lathe.
Does a dust collector replace an air filtration unit?
No, they do different jobs. A collector captures dust at the source while an ambient air cleaner scrubs what escapes. In a small garage, running both beats either alone.
